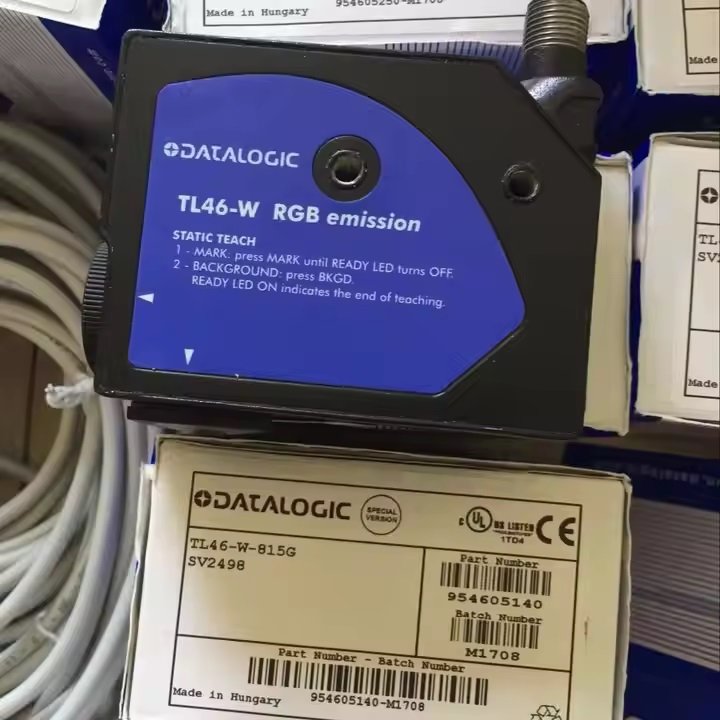

Original Italy DATALOGIC TL46-W-815G Color sensor,Contrast sensor ,Photoelectric sensor
The DATALOGIC TL46-W-815G Color sensor ,contrast sensor, photoelectric sensor offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimized optics of these sensors, the RGB LED emission with automatic color selection and the very fine resolution, allow the detection of the weakest contrast of colors or grayscale between mark and background, or between different objects or surfaces. The high resolution is not a limit for the detection speed, reaching 33ms response time and 15kHz switching frequency
-
FEATURES & BENEFITS
· RGB emission: high detection reliability and resolution
· Teach-in push-button: fast and easy setting
· 15KHz switching frequency: precise and repeatability reading
-
TECHNICAL PARAMETERS
Power supply
10-30 Vdc1 , reverse polarity protection
Ripple
2 Vpp max.
Consumption
50 mA max. at 24Vdc
Light emission
RGB LED (630nm red, 520nm green, 465nm blue) 2
Spot dimension
1.5 x 5 mm at 9 mm
Operating distance
9 mm
Depth of field
± 3 mm (with standard 9 mm lens)
Setting
MARK push-button
BKGD push-button
Indicators
yellow OUT PUT LED
green READY LED
orange DE LAY LED
Output type
1 PNP output / 1 NPN output
Output current
100 mA max.
Saturation voltage
≤2 V
Response time
33 μs
Switching frequency
15 kHz
Operating mode
dark/light automatic
Timing function
0 … 20 ms selectable
Connections
4-pole M12 connector
Electrical protection
class 2
Mechanical protection
IP67
Protection devices
A, B3
Housing material
ABS
Lens material
PMMA
Operating temperature
-10…55°C
Storage temperature
-20…70°C
Reference standard
EN 60947-5-2
