About the product
- Japan Fujikura Low Friction Cylinder FCS-63-78-S1-P BF Cylinder

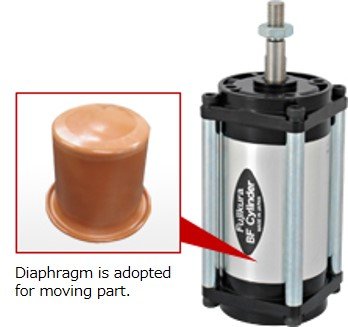

BF Cylinders are bound together by unique unrivaled common features, which are all attributable to the rolling action of BF Diaphragms.
Feature :
1.Perfect Leak-proof: No Blow-By Leakage.
2.Low Friction: Responsive to minute pressure variations , Virtually no hysteresis-loss in movement, Low start up pressure as low as 0.01MPa, Smooth “Non-Jarring” action, Ready to start even after long interval.
3.Lubrication-Free: No Lubricator required in the air line. Excellent resistance to pressure: Assured by the rolling principle of BF Diaphragms.
- Application
BF Cylinders find its best applications in such cases where air leakage is not allowed and/or sensitive response is desired to minute pressure variations, it is Widely used in tension controller ,gravure printing , leather and paper industry
- ALL Model SPECIFICATIONS
Operating Style Single Action (Push)/Double Action Cylinder Diameter mm 10 to 200 Stroke mm 6 to 320 Working Fluid Compressed Air (Non-Lubricated) Working Pressure Range MPa 0.01–0.7 Working Temperature Range 0 to 60 Rod Bearing Dry Bearing Mounting Direct, L, Front Flange, Rear Flange, Trunnion, Pivot-Mounting
